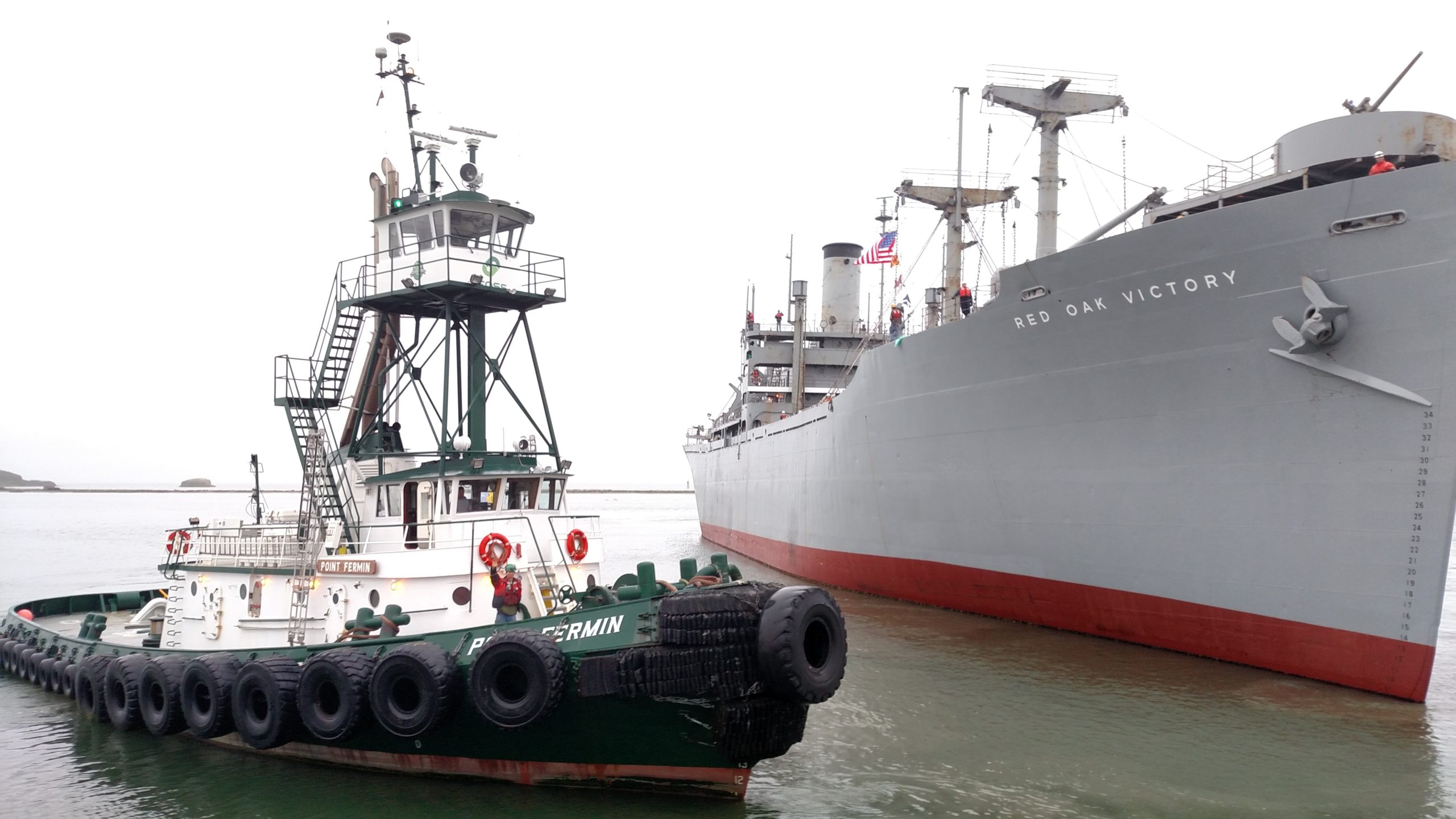

POINT FERMIN
The Point Fermin is one of our Conventional tugs with a Raised Pilot House. Featuring 3,500 horsepower with 35 tons of bollard pull, the Point Vicente serves our customers in the Northern California region.
VESSEL DESCRIPTION
| Name | POINT FERMIN |
| Services | Harbor Barge Assist |
| Class Notations | ABS Load Line/Dropped |
| Hailing Port | San Francisco, CA | Call Sign | WYL5402 |
| Keel Aid | N/A |
| Delivery | 1976 |
| Rebuilt | N/A |
| Builder | J.M. Martinac, Tacoma, WA |
TANK CAPACITY
TANK CAPACITY
| Fuel Capacity | 67,627 gal |
| Fuel Type | MGO |
| Urea | N/A |
| Hydraulic | N/A |
| Waste Oil | N/A |
| Ballast | N/A |
| Holding Tanks | Dirty Oil |
| Lube Oil | 1,743 gal |
DIMENSIONS
DIMENSIONS
| Reg. Gt. | 150 |
| Reg. Nt. | 102 | Itc Gt. | N/A |
| Itc Nt. | N/A | Draft Min | 13.6' |
| Draft Max | 16.2' |
| Reg. Length | 97.7' |
| Reg. Breadth | 34' |
| Moulded Depth | 16'-2 1/2" |
| Length Overall | 105' |
| Beam Overall | 36' |
| Air Draft | N/A |
| Displacement | N/A |
MACHINERY
MACHINERY
| Configuration | Conventional |
| Main Engine | (2) EMD 12-645-E2 | Reduction Gear | Falk 1630 MRVDF-C |
| Propeller | (2) 108" Dia. 5 Bladed, 82"Fixed Pitch | Drives / Nozzles | N/A |
| Total Rated HP | 3,000 BHP @ 900 RPM |
| Bollard Pull | 34.92 ST (31.68 MT) Ahead 21.45 ST (19.46 MT) Astern |
| Main Genset | (2) John Deere 99 Kw,(1) Detroit Diesel 4-71 Genset, 40 kWe |
| AUX Genset | (3) Independent Gens |
| Fire Pump | N/A |
DECK GEAR
DECK GEAR
| ABS LL | Y |
| ABS Class | N | USCG INSP | Y |
| Registry | Y | Coastwise |
| SOLAS | N |
REGULATORY
REGULATORY
| ABS LL | Y |
| ABS Class | N | USCG INSP | Y |
| Registry | Y | Coastwise |
| SOLAS | N |
CREWING REQUIREMENTS
CREWING REQUIREMENTS
| DOM. | Y |
| INTL OR | N |
| Max. Berths | Y |
